AMO UV Inkjet Printer AM3200UV8k24i-ES 3.2meters with 8 Konica 1024i Printheads Amo Soft and Elastic Film UV Inkjet Printer AM3200UV4k24i-ES with 8 Konica KM1024i printhead This series can not print on very soft and elastic material like soft film.But it quite economico to print on Flex banner,...
Price: $ 22500

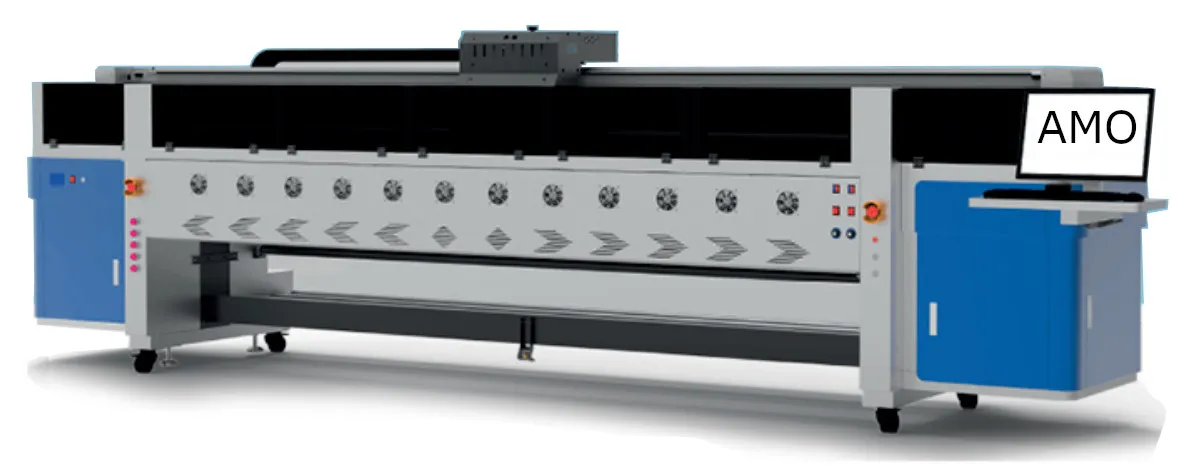

AMO UV Inkjet Printer AM3200UV8k24i-ES 3.2meters with 8 Konica 1024i Printheads
Amo Soft and Elastic Film UV Inkjet Printer AM3200UV4k24i-ES with 8 Konica KM1024i printhead
This series can not print on very soft and elastic material like soft film.But it quite economico to print on Flex banner,coated flex banner,vinyl,mes,one way vision,canvas
1.Printhead Nozzle Heating System& Ink Circulation: The Printhead nozzle plate integrates a heating function to ensure optimal ink flow stability across varying temperature environments. The built-in ink
circulation system prevents pigment sedimentation within nozzles, effectively reducing nozzle clogging risks.
2.Fully Transparent Secondary Ink Tank Design &Independent Color Pressure Control:(1) Transparent construction enables easier troubleshooting and reduces maintenance time.(2)
Independent pressure adjustment mechanisms optimize ink consumption efficiency.
3.High-Power Heating/Drying System: Features segmented heating zones to improve material ink absorption and color fastness. Incorporates a proprietary built-in thermal air
circulation chamber coupled with a cold air diversion system, enabling rapid post-drying cooling to ensure finer details and glossier finishes.
Machine Parameters
Maximum Print Width 3200MM
Printheads: 8 Konica1024i
Printing speed:
Extemal light Mode 90m²/h
Internal Light Mode 54 m²/h
Media:Flex banner,vinyl,one way vision,mesh,wallpaper/colth,polyester Cloth,backlit film,Photo paper, Canva etc
RIP Software: color management software
Power: AC220±10.50HZ60HZP4500W
Printer PackingSize: L5300*W1180*H1700/L5600*W1250*H2100
Net /Gloss Weight: 2500kg/2800kg
Applications:
